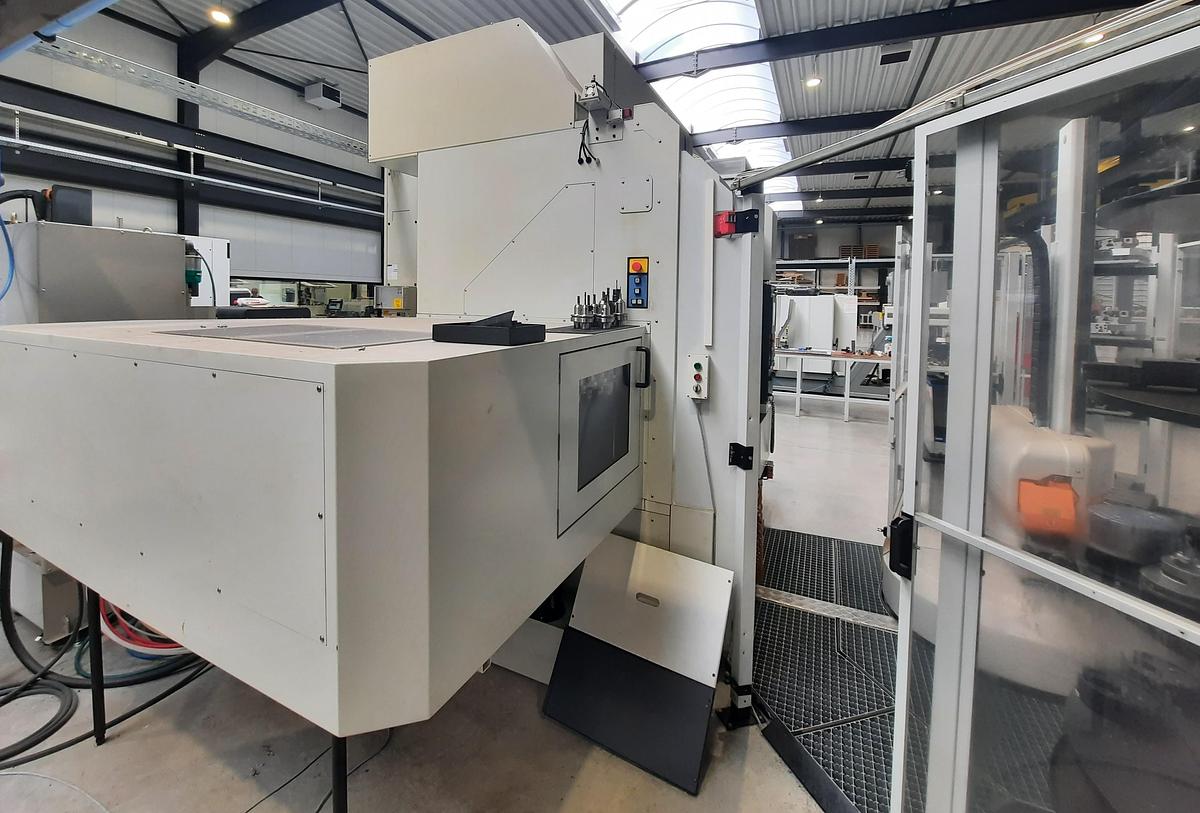

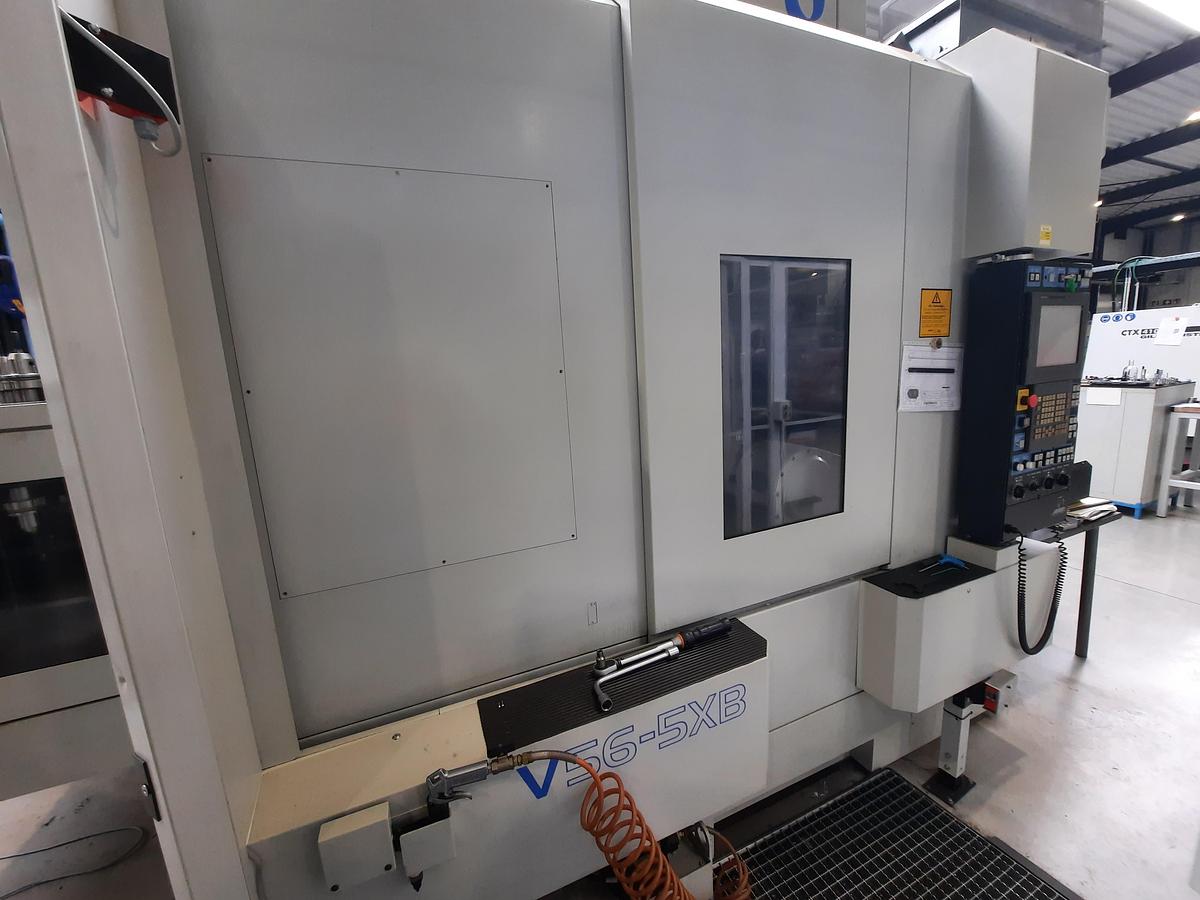

2007 MAKINO V56-5XB + 3R System robot cell

2007 MAKINO V56-5XB + 3R System robot cell
Location:Belgium
Description
Great opportunity to purchase this high-end 5-axis machining center with full automation.
Ultra-precise, high-speed spindle of 30,000 rpm, HSK-F63.

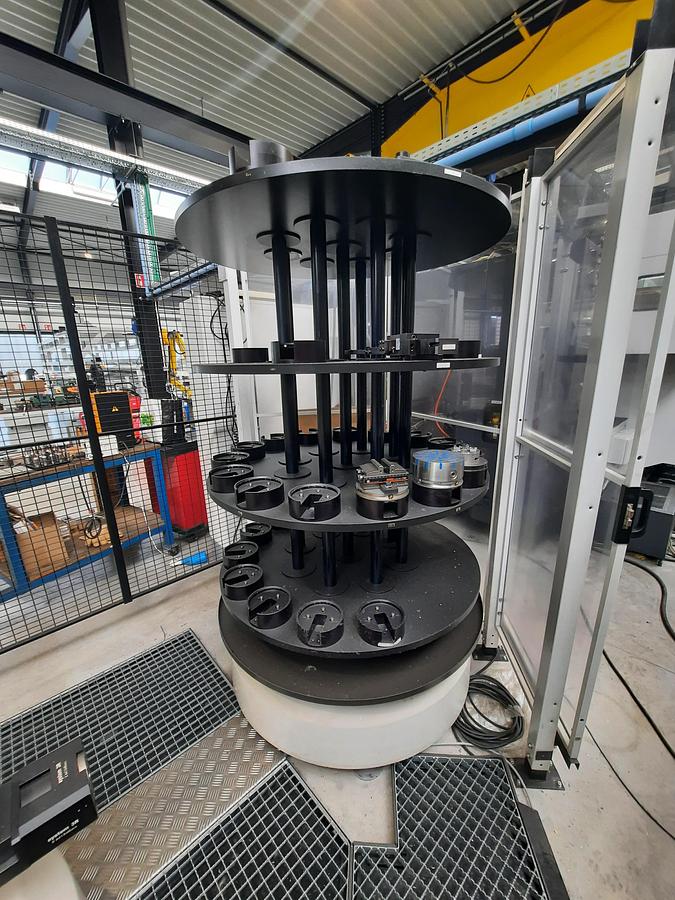

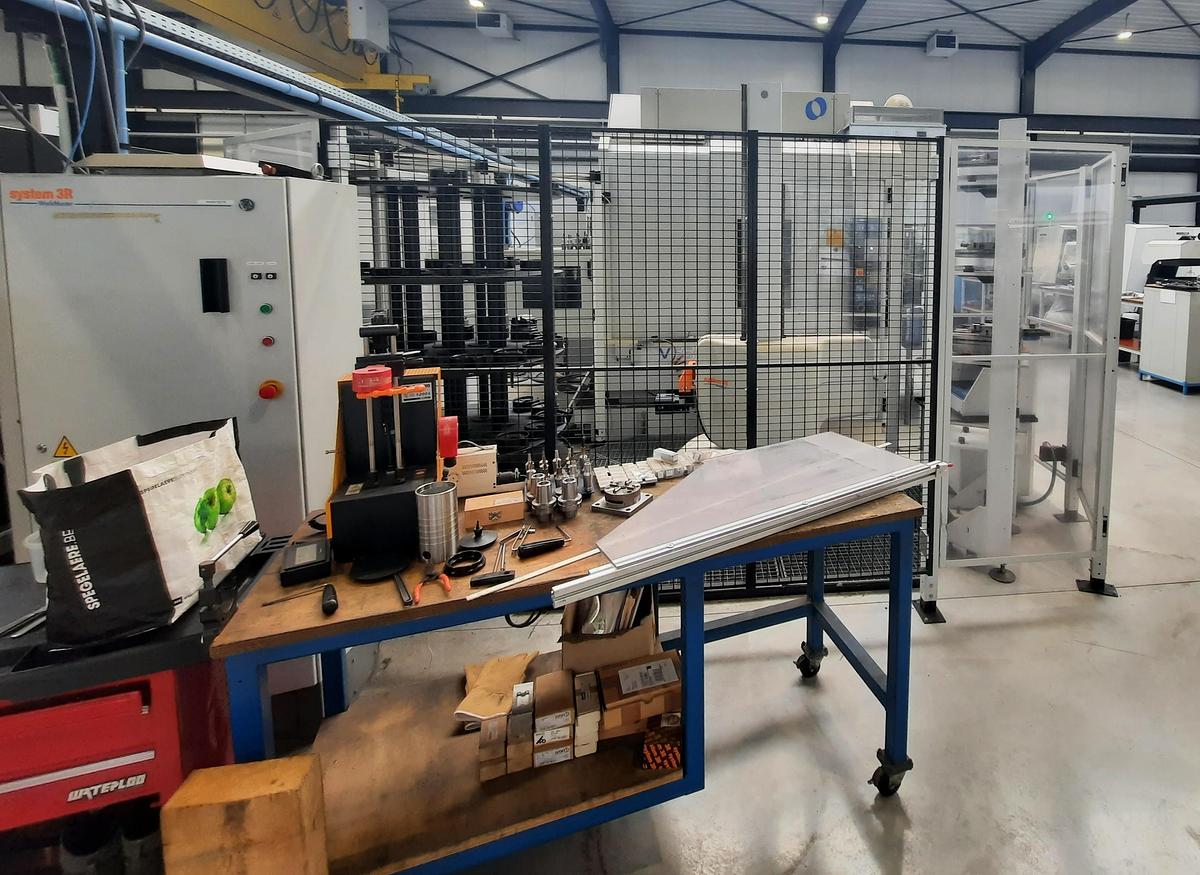

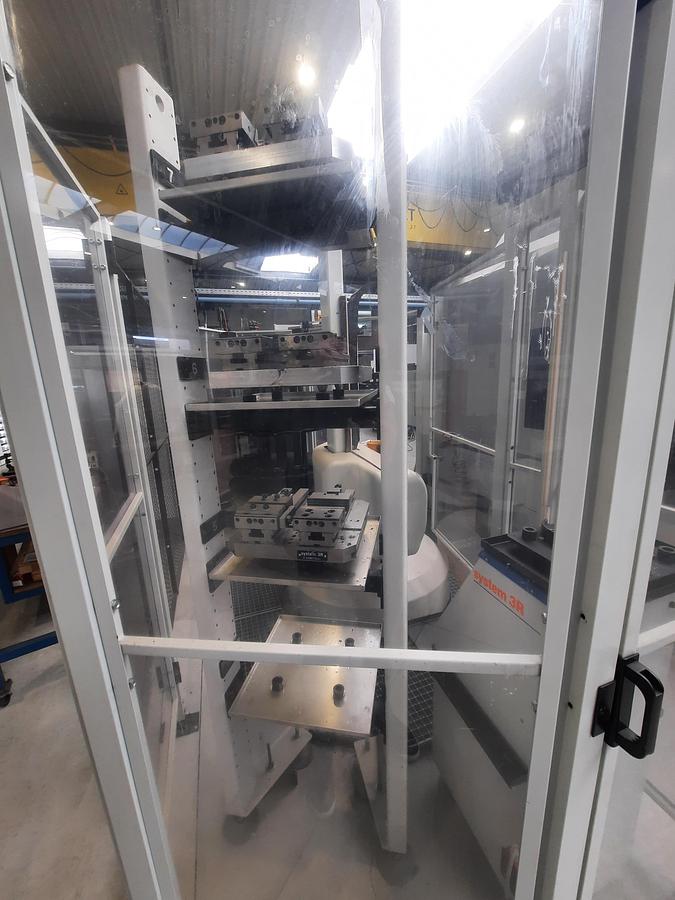

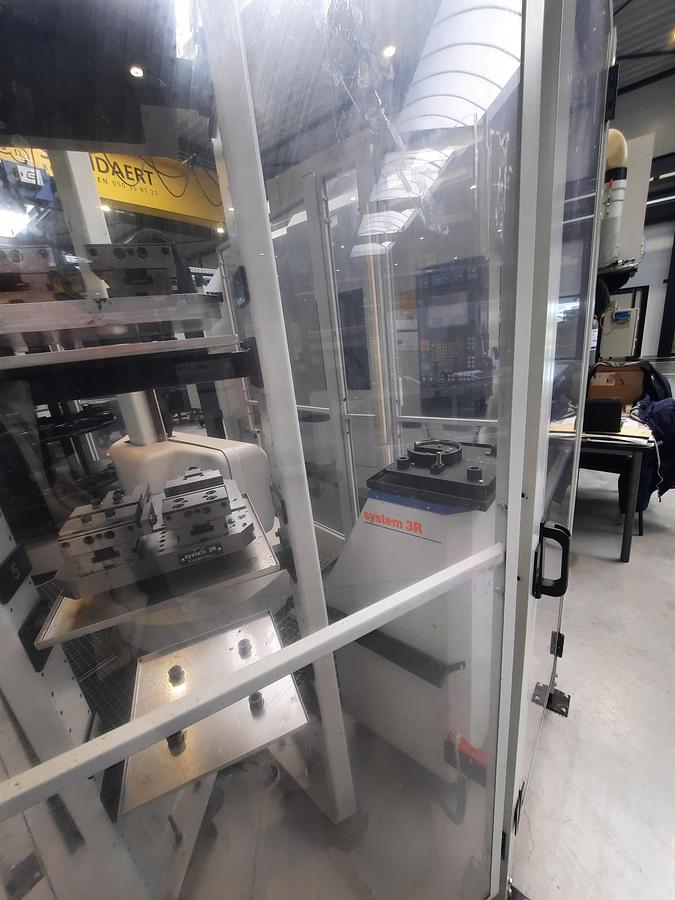

The 3R System Work master robot cell, automation interface, automatic door, full probing en high-end options enable unmanned and continuous production.
Full technical specifications and options in the attached document.
Machine can be inspected in operation upon appointment.
Ready for immediate purchase and delivery.
More information available on request.
Please note: The information on this page has been obtained to the best of our ability and belief. This information is provided in good faith, but its accuracy is not guaranteed. Accordingly, this information is not binding and does not constitute a contractual condition. We recommend that you check all essential details during an inspection of the machine. To save unnecessary travel costs for our customers, in most cases we recommend organizing a live video inspection.
Specifications
| Manufacturer | MAKINO |
| Model | V56-5XB + 3R System robot cell |
| Year | 2007 |
| Condition | Used |
| Stock Number | 00068 |

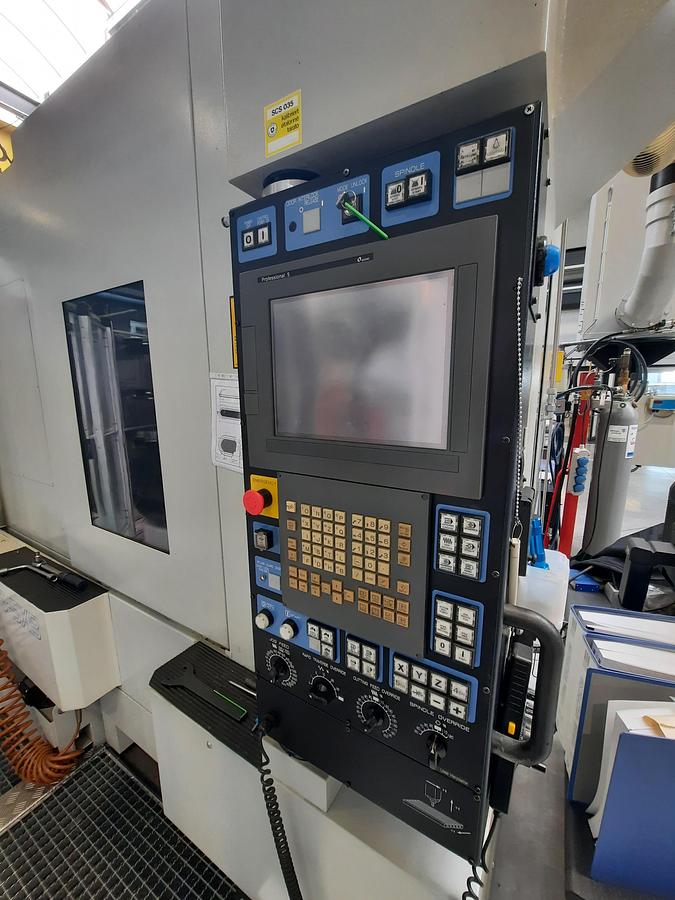

| CNC Control | Fanuc 310i – PRO5 |
| X | 900 mm |
| Y | 550 mm |
| Z | 450 mm |
| A-axis swivel range | -20° / +110° |
| C-axis rotation range | 360° |
| Weight on A-C axis | 30 kg |
| Spindle | 30000 rpm |
| Power | 13kW/Cont. |
| Spindle torque | 16,9Nm/Cont. |

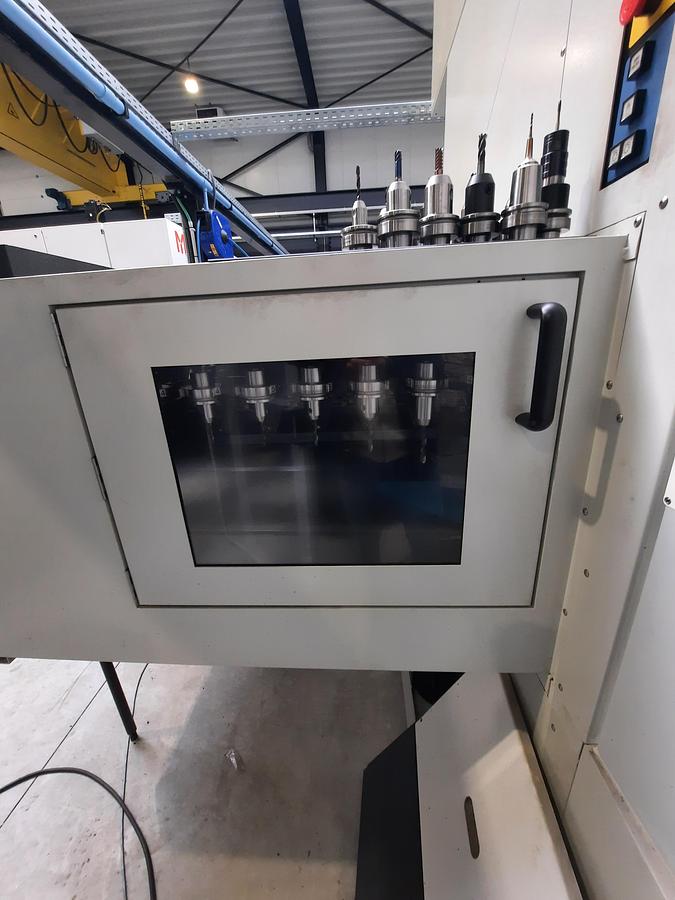

| Tool Changer, ATC | 60 positions |
| Cone Tool holders | HSK-F63 |
| Machine weight | 10300 kg |
| Table size / pallet size | 358 x 358 mm |
| Max weight on the table | 800 kg |
