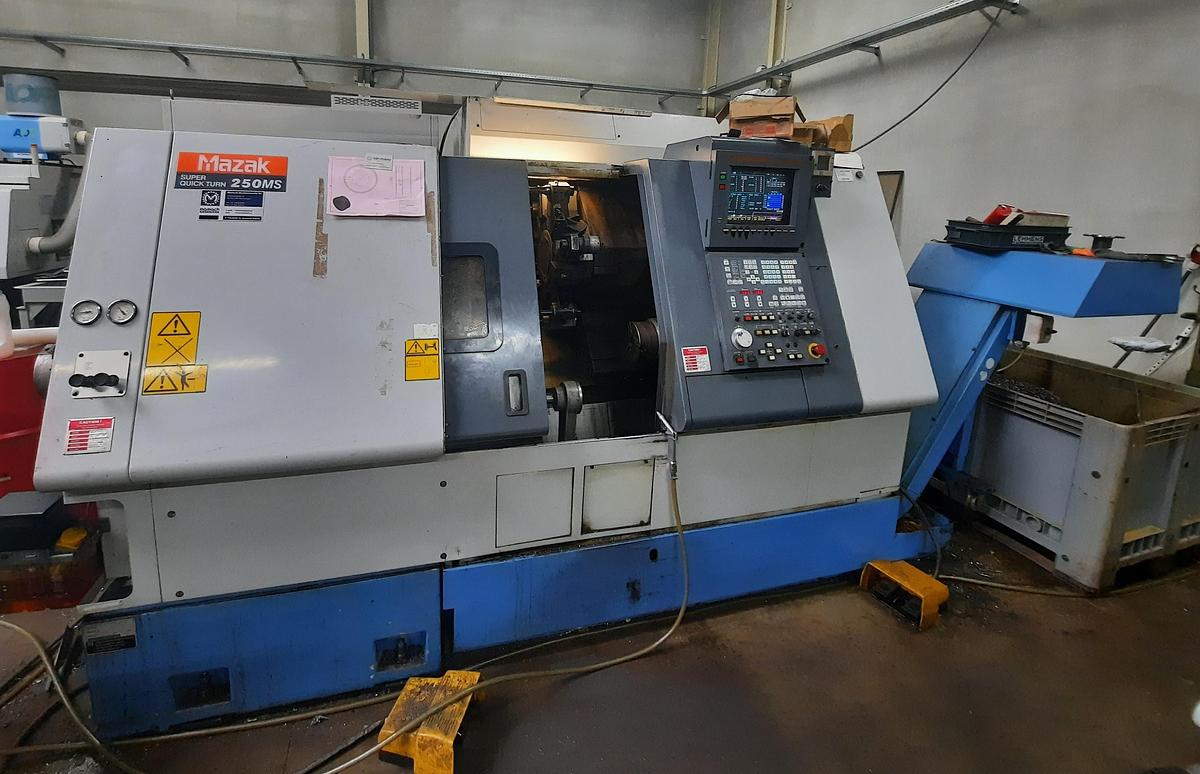

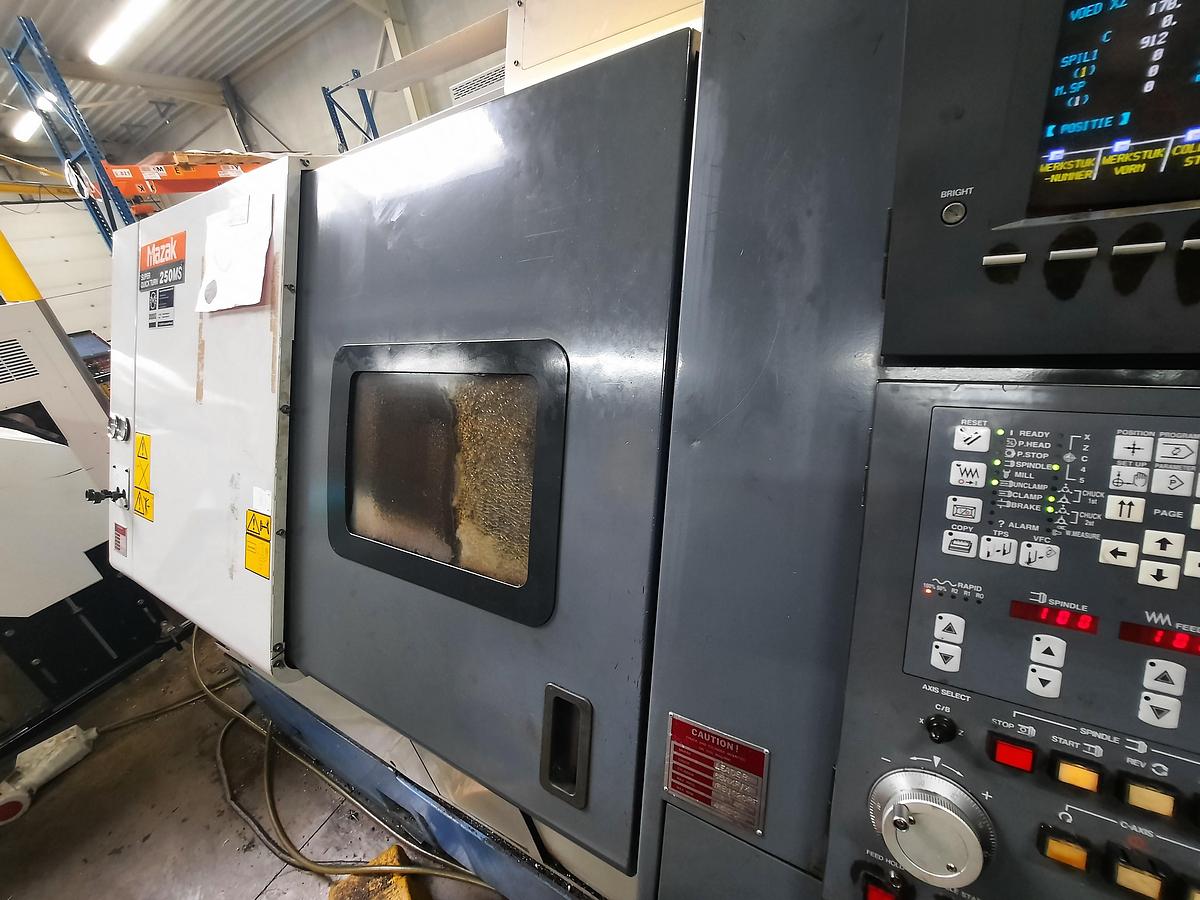

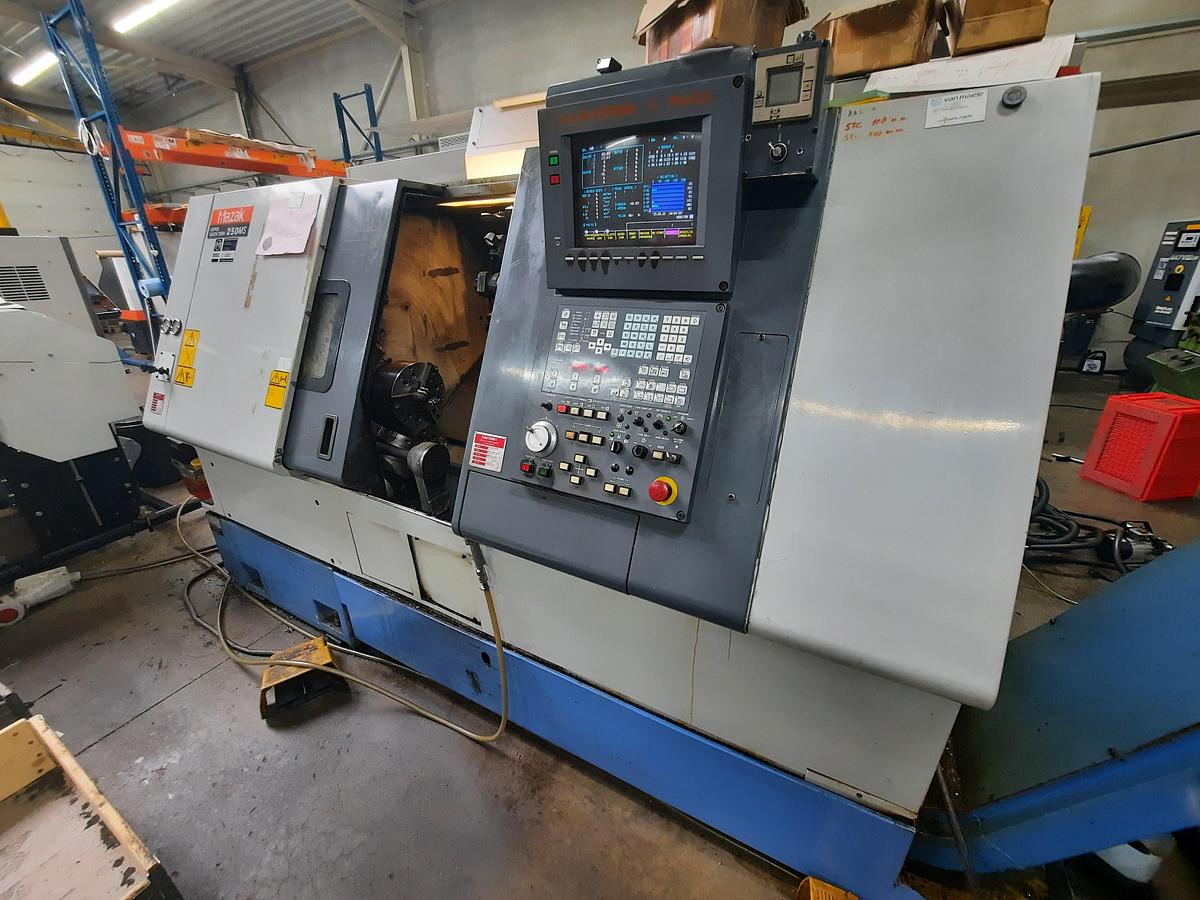

1998 MAZAK SQT 250MS (2)

Mazak turning and milling center with main and subspindle, tool drive and C-axis.

This machine can be inspected under power upon appointment and is immediately available.

turning diameter: max. 300 mm

turning length: max. ca. 550 mm

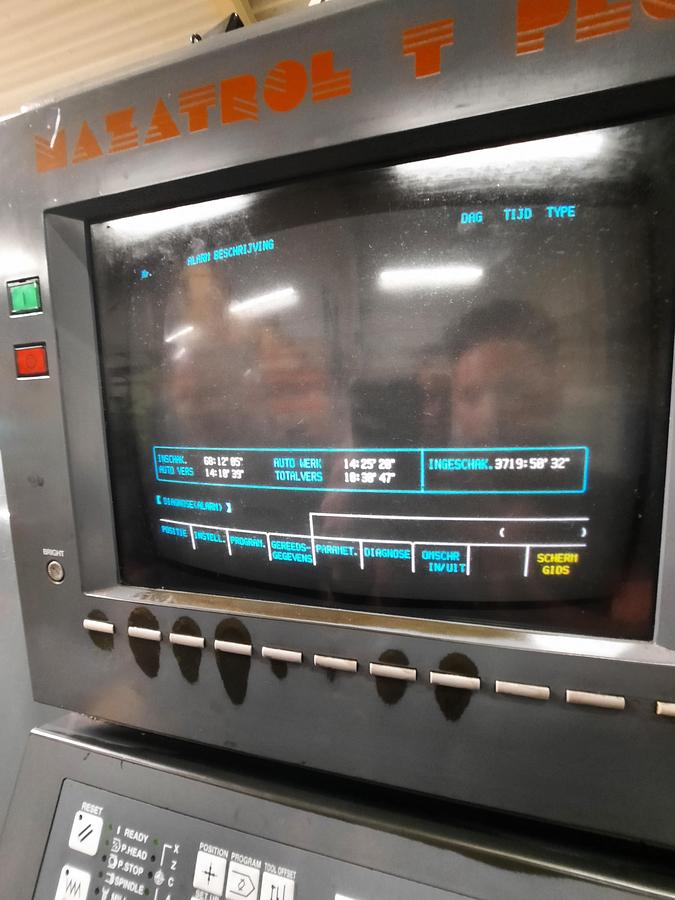

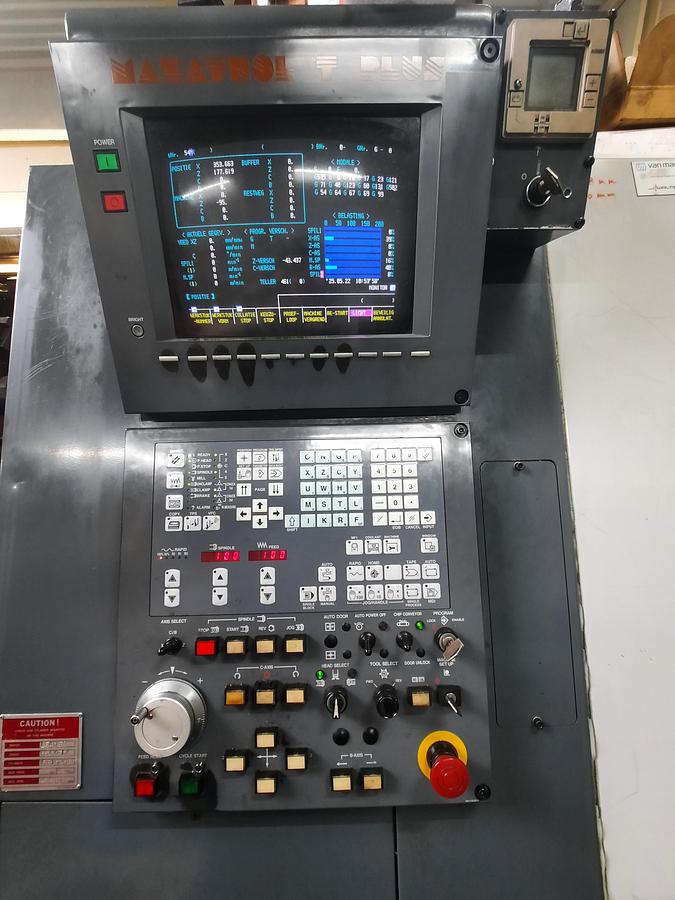

Cnc control: Mazatrol T Plus

Standard turning diameter: 276 mm

Swing diameter: max. 525 mm

Distance Spindlenose - turret face: 115 - 690 mm

Max spindle speed: 4.000 rpm

spindle bore 76 mm

Max. bar diameter: 64 mm

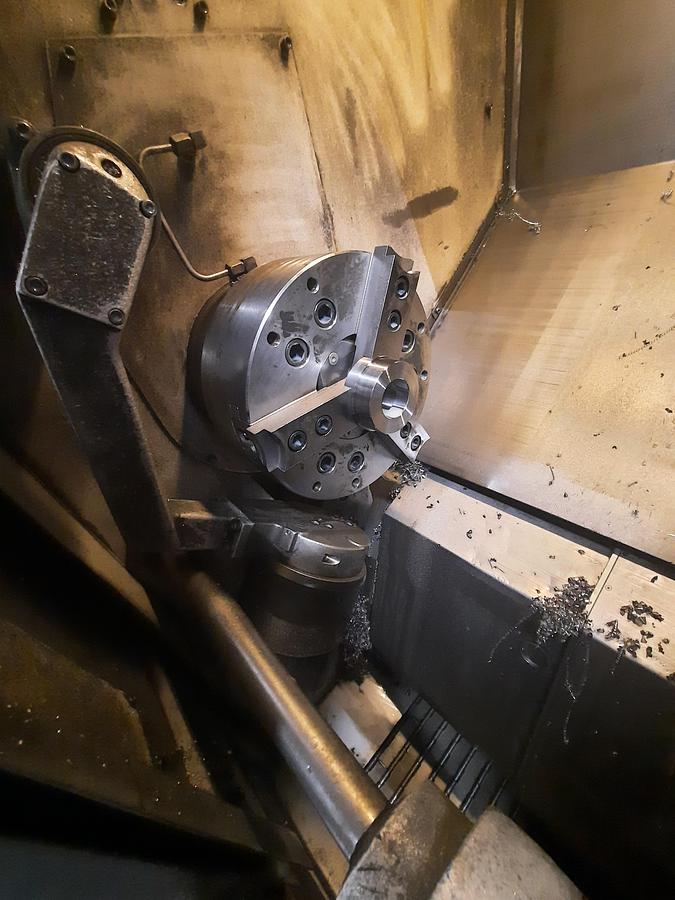

Chucking diameter: max. 250 mm

C-Axis 360 °

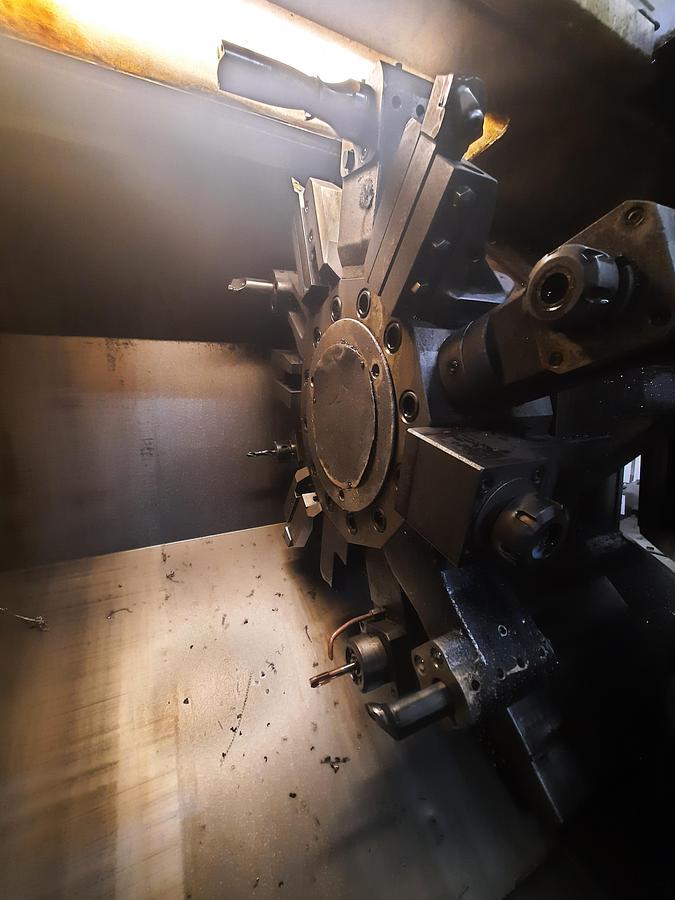

number of toolpositions: 12

chucking diameter max. 150 mm

x-axis 190 (185 + 5) mm

z-axis 575 (580 + 5) mm

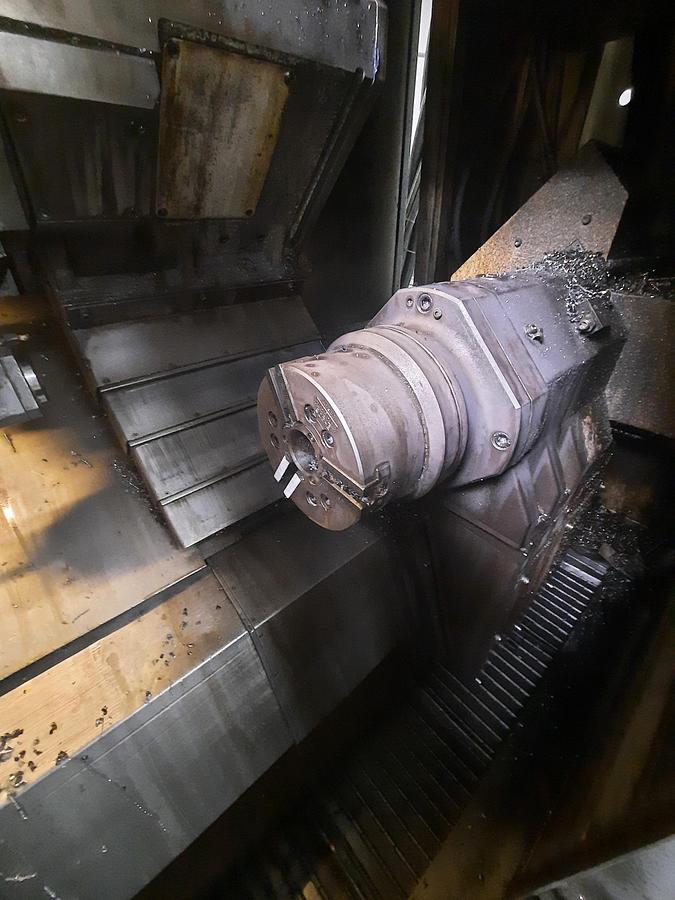

Traverses Subspindle B: 585 (580 + 5) mm

C-Axis 360 °

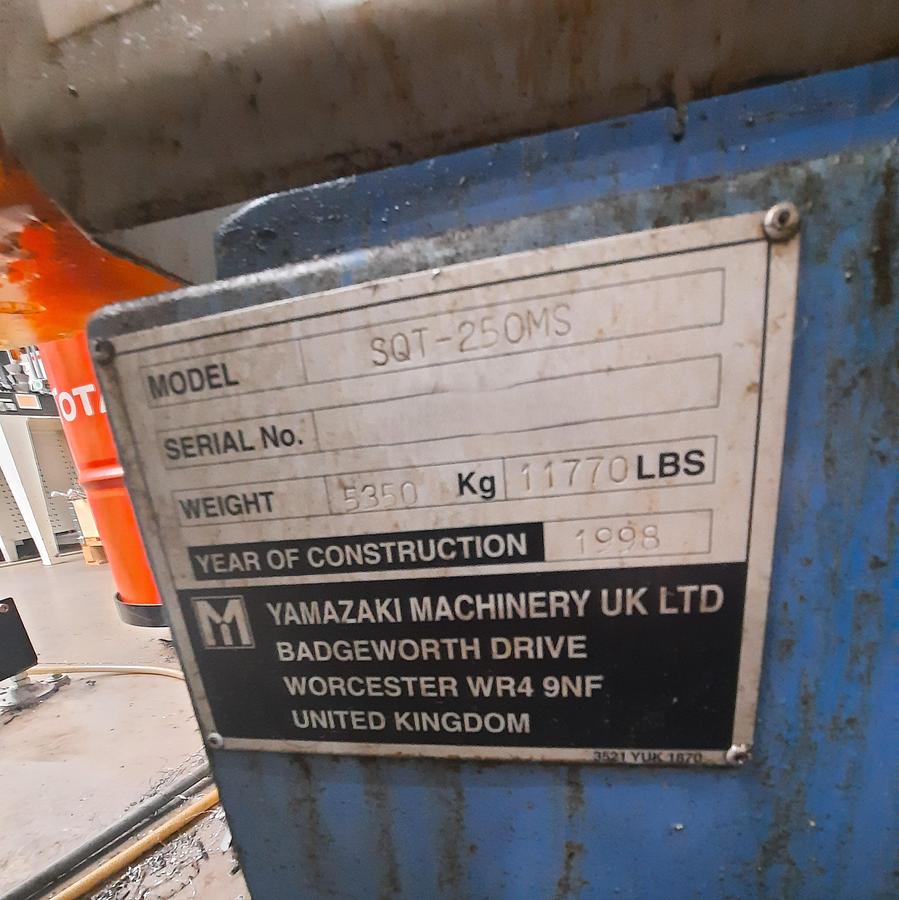

weight of the machine ca. 5,9 t

dimensions of the machine ca. 5,0 x 3,0 x 2,5 m

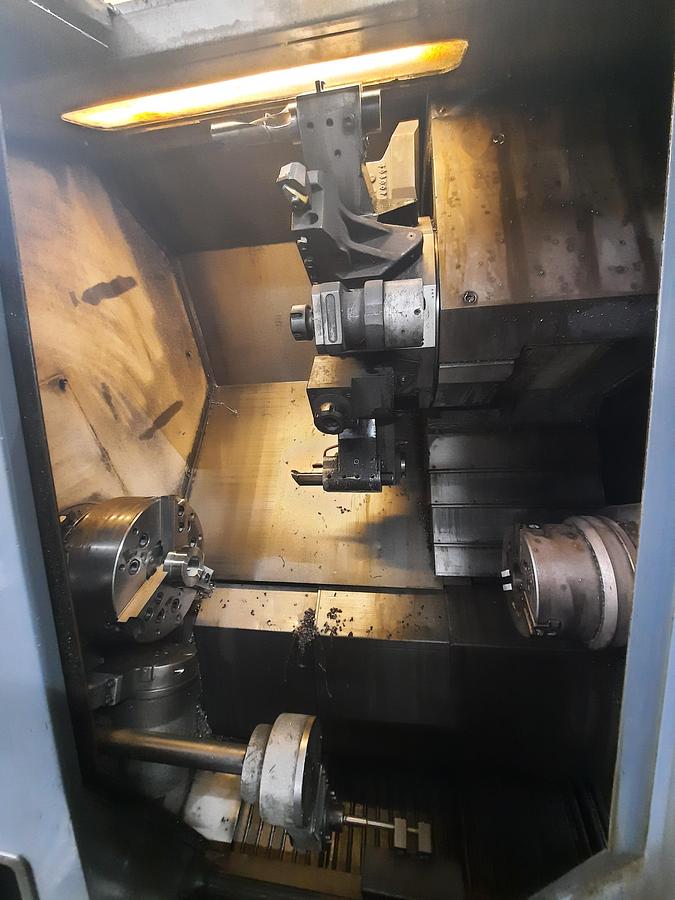

- Main- and Subspindle

- Tool-Drive

- C-Axis
