2007 DMG Gildemeister NEF 400
2007 DMG Gildemeister NEF 400
Location:Belgium
Description

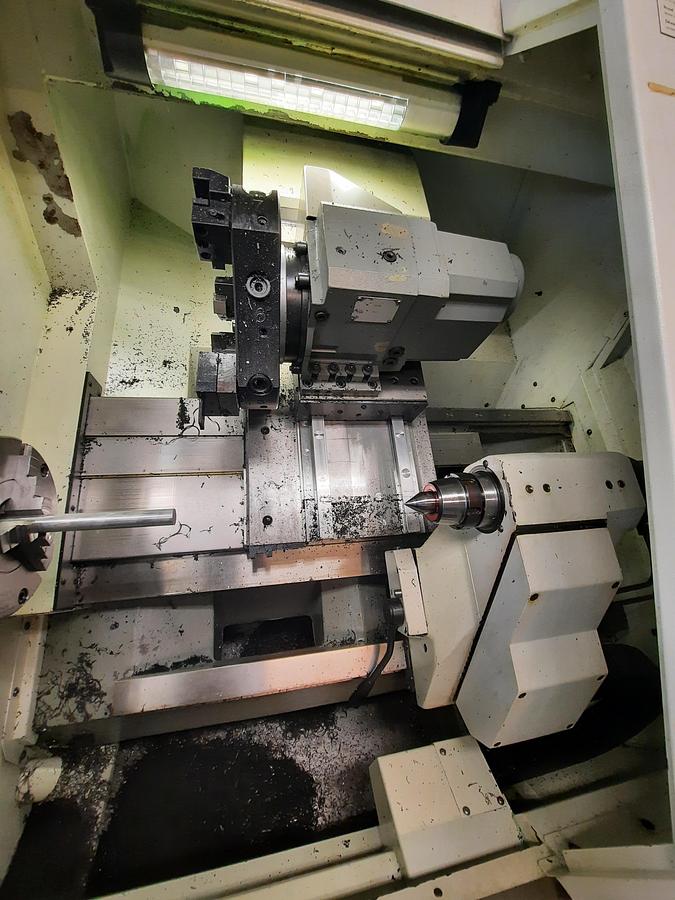

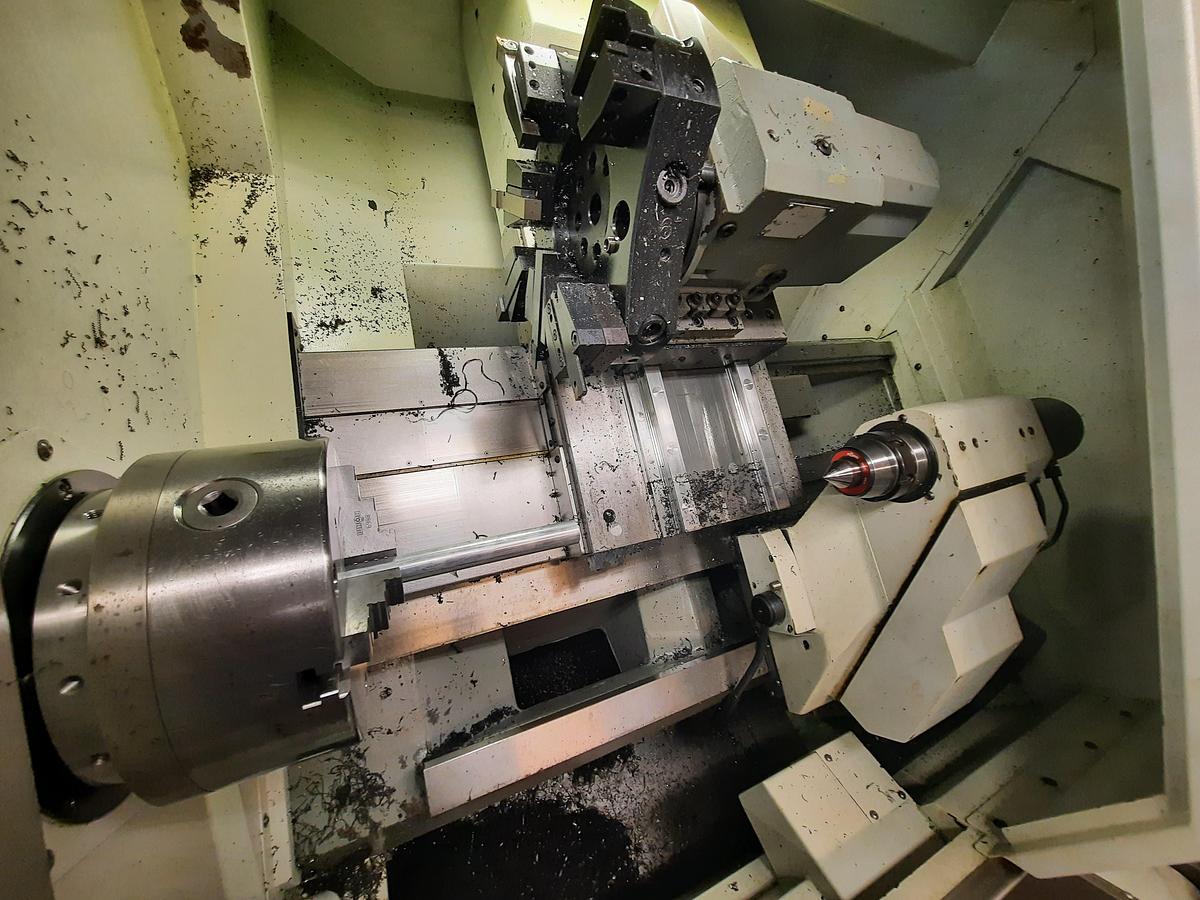

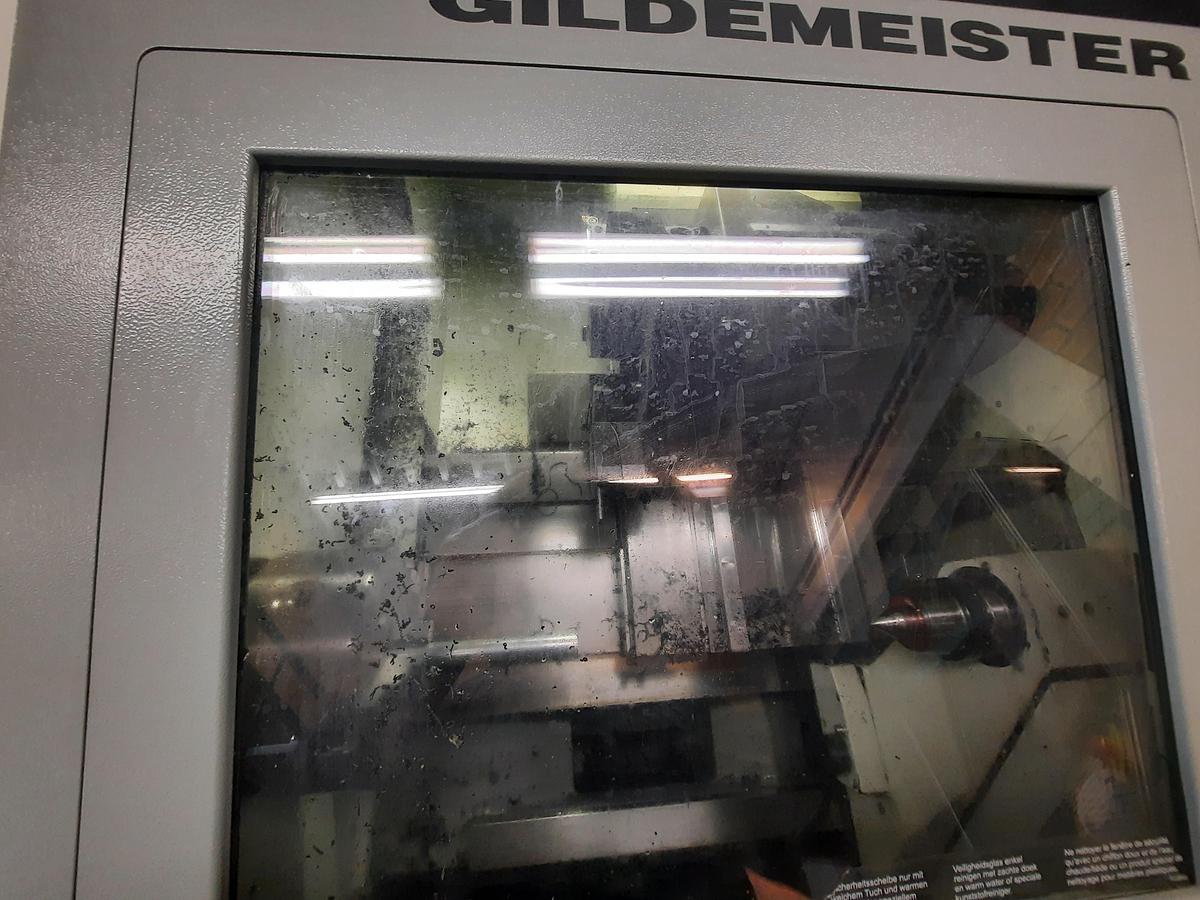

This DMG Gildemeister NEF 400 lathe is still in very good condition and has only 3848 spindle hours.
It is immediately available and can be viewed in operation by appointment.
Please note:
The information on this page has been obtained to the best of our ability and belief. This information is provided in good faith, but its accuracy is not guaranteed. Accordingly, this information is not binding and does not constitute a contractual condition. We recommend that you check all essential details during an inspection of the machine. To save unnecessary travel costs for our customers, in most cases we recommend organizing a live video inspection.
Specifications
| Manufacturer | DMG Gildemeister |
| Model | NEF 400 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 00029 |

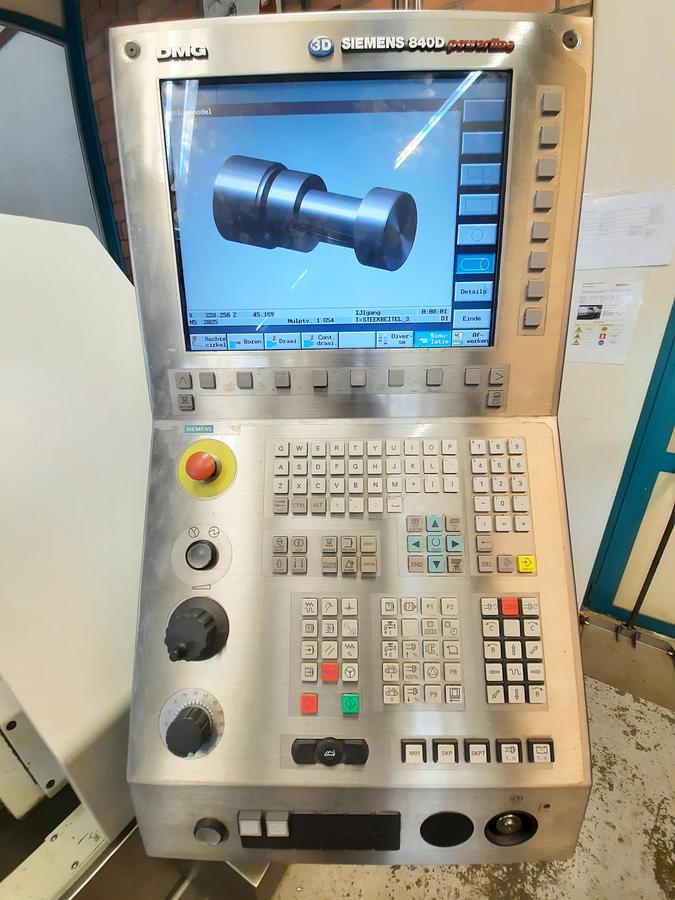

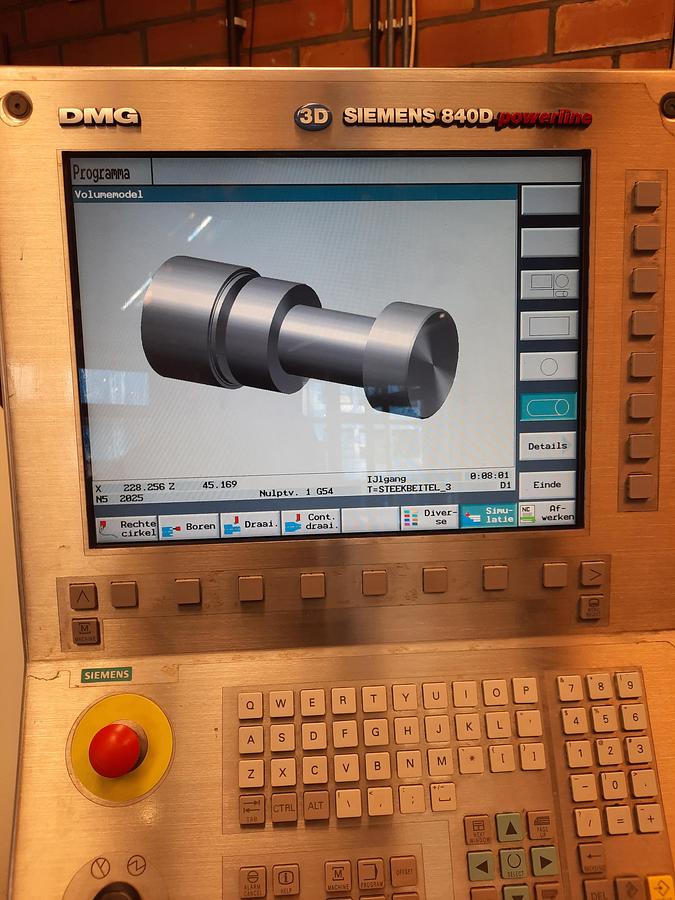

| Control | 3D Siemens 840D Powerline |

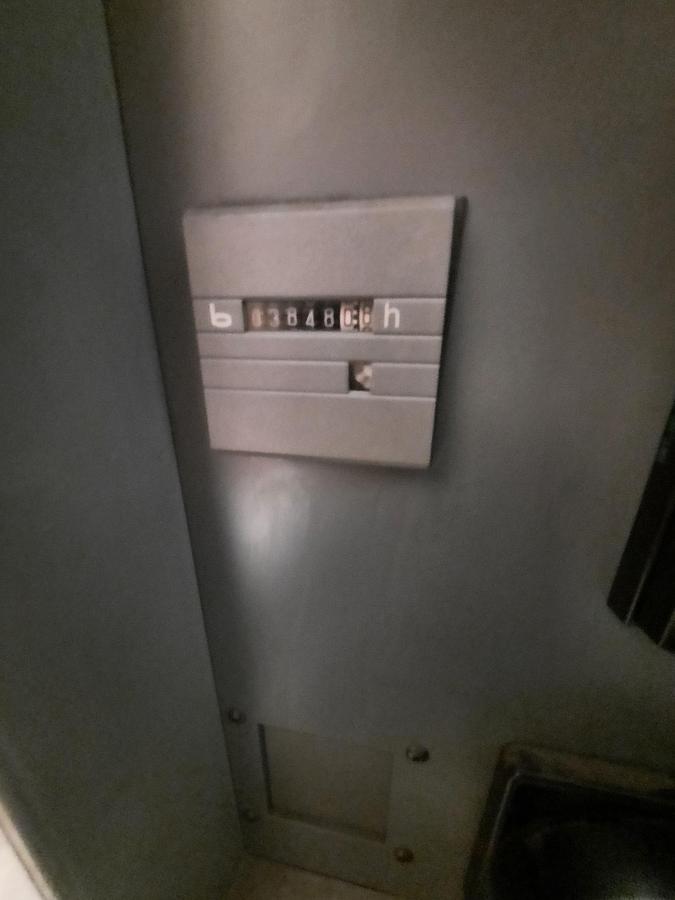

| Spindle hours | 3848 |
| X-axis (transverse travel) | approx. 220 mm |
| Z-axis (longitudinal travel) | approx. 700 mm |
| Max. turning diameter | approx. 400 mm |
| Max. turning length | 650 mm |
| Max. swing diameter over bed | 400 mm |
| Max. swing diameter over cross slide | 270 mm |
| Spindle bore | 65 mm |
| Speed range | 0 - 4,000 rpm |
| Max. torque | 400 Nm |
| Number of tool positions | 8 |

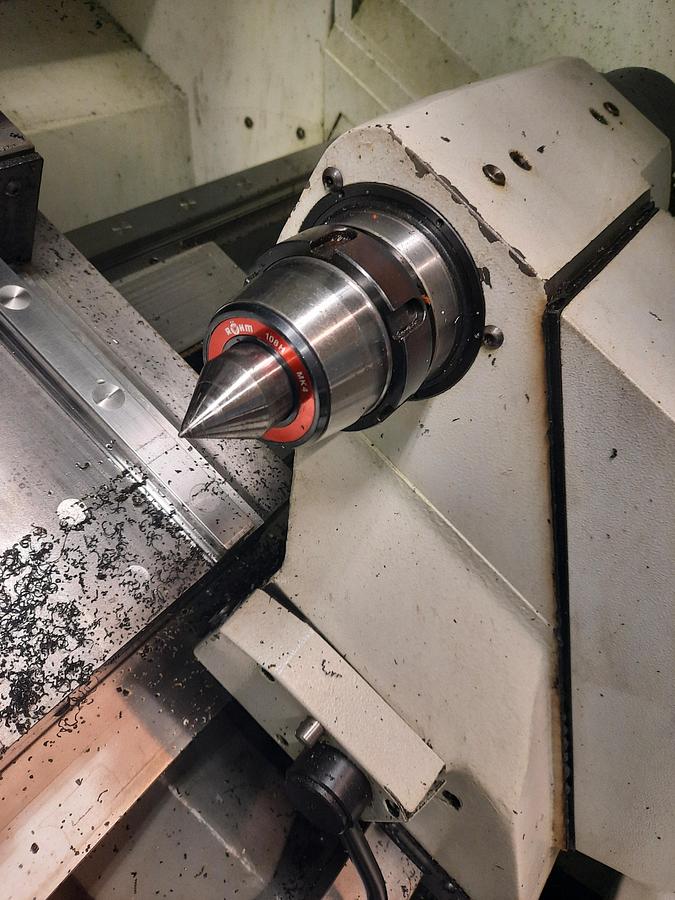

| Tailstock stroke | 680 mm |
| Tailstock mounting | MK 4 |

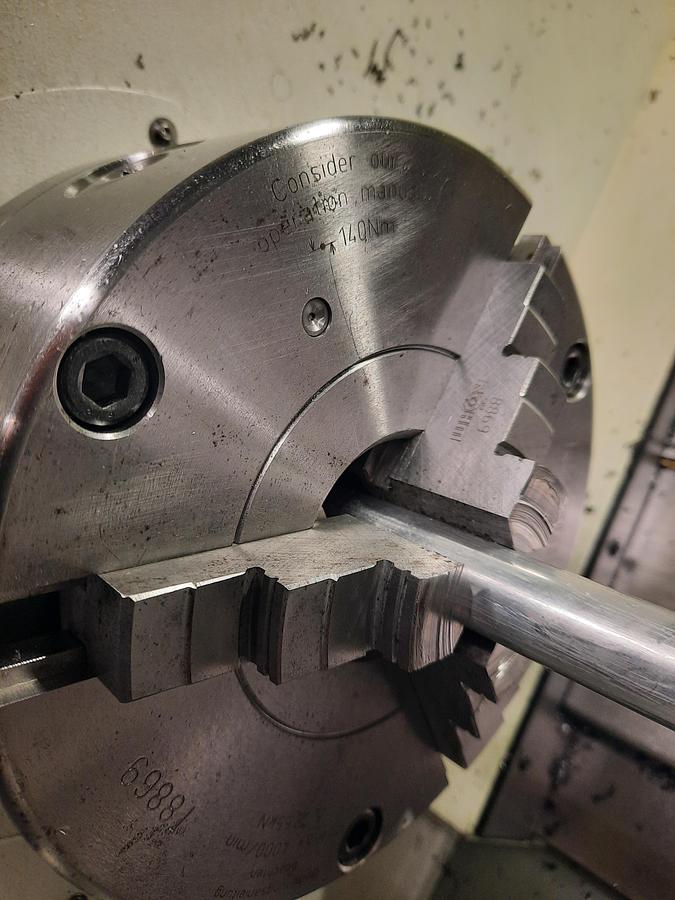

| Clamping force | approx. 6.8 kN (hydraulic) |
| Space required (L x W x H) | approx. 2.5 x 1.7 x 1.8 m |
| Machine weight | approx. 2.8 t |
