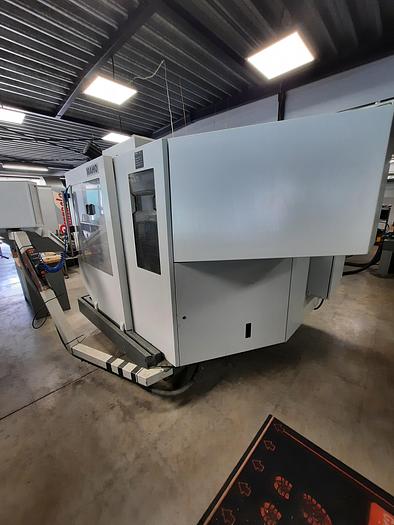

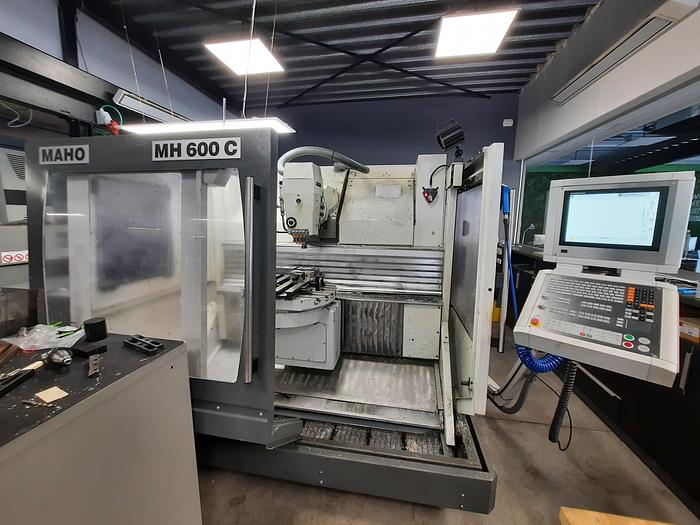

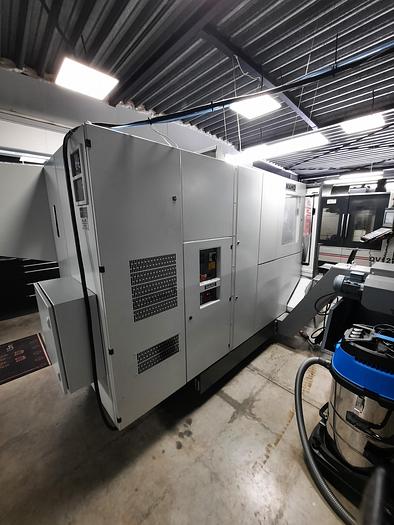

1999 Deckel Maho MH 600C

1999 Deckel Maho MH 600C

Belgium

Description

Vertical machining center (4+1 axis) in very good condition.

Full checkup and retrofit in 2014

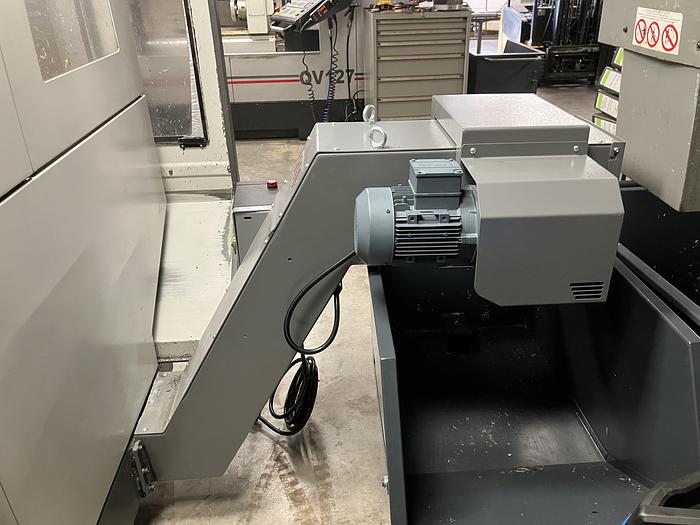

New Heidenhain 620 control and chip chip conveyor installed in January 2023


Estimated availability: 09/2024

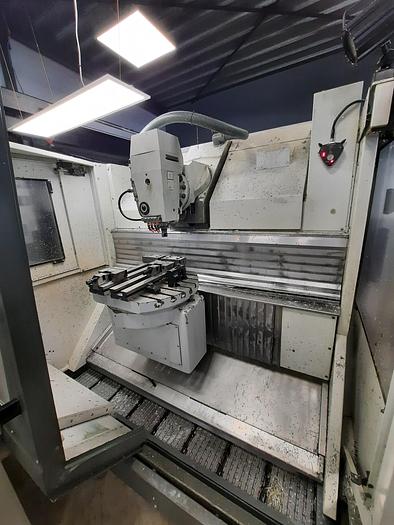

Manually controlled head and 4+1 axis > By manually placing the milling head at an angle, 5-axis milling can be performed.

The head can turn completely away to place the tools in a horizontal position with the automatic tool changer.

All axes are drivenautomatically, even the turntable, for horizontal or vertical, can be steered automatically, only for angle cutting you have to manually adjust the head.


Machine table adjustment (working range):

in the horizontal longitudinal axis (X-axis): 600 mm

in the vertical axis (Y axis): 450 mm

in the horizontal transverse axis (Z axis): 450 mm


Tool holder: ISO 40

Axis stroke of the vertical work spindle: 80 mm

Pull bolt: ISO type B


Working spindle speeds, directly programmable: 20-6300 rpm.

Feed rates, directly programmable in the X, Y and Z axes: 1-6000 mm/min.

Rapid traverse in the X, Y and Z axes: 6 m/min.


Tool magazine (30 tools)

Tool shank ISO 40, DIN 69871/1 with pull bolt ISO/DIS 7388/11, type B

Max. tool diameter: 130 mm

Max. tool length (from spindle nose): 250 mm

Max. tool weight: 10 kg

Compressed air connection: approx. 5.5-8.0 bar


Machine dimensions:

Length: 3245mm

Width: 2030mm

Height: 2192mm

Weight: approx. 3600 kg



Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!



Specifications

ManufacturerDeckel Maho
ModelMH 600C
Year1999
ConditionUsed
