2023 IEMCA BOSS 338/32 HD LL
2023 IEMCA BOSS 338/32 HD LL
Belgium
Description

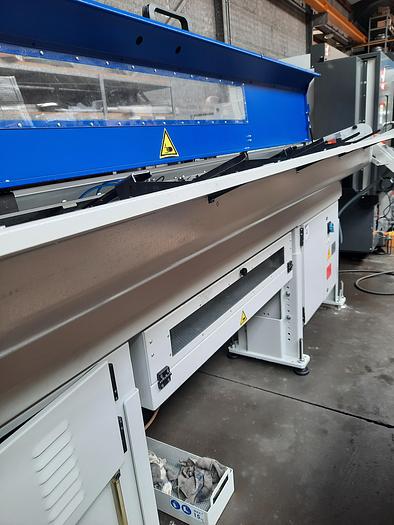

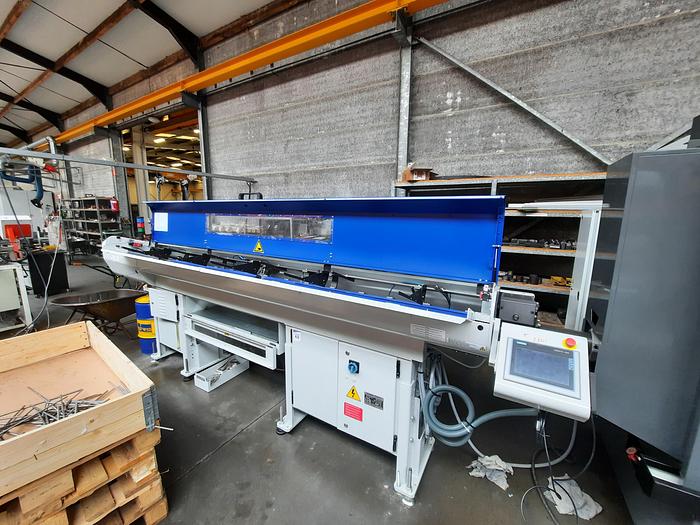

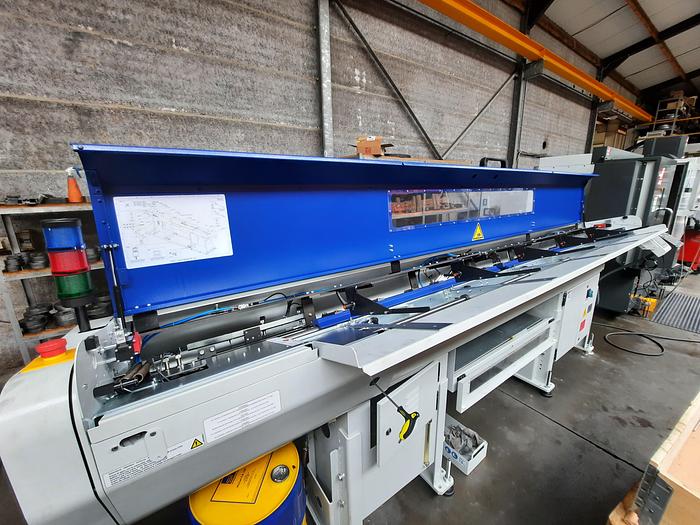

IEMCA automatic bar feeder for bars with diameters between 3 and 38 mm and maximum length of 3200 mm.
Excellent condition - LIKE NEW - very little used
Immediately available

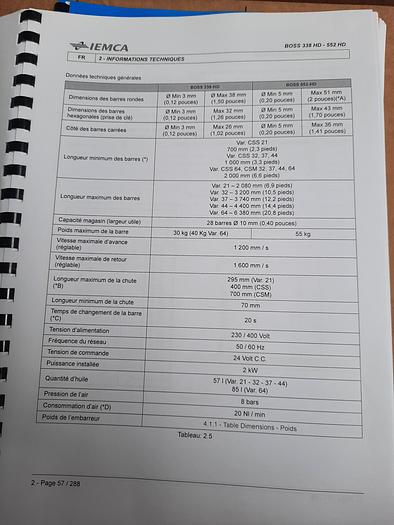

Specifications
| Manufacturer | IEMCA |
| Model | BOSS 338/32 HD LL |
| Year | 2023 |
| Condition | Used |
| Dimensions of round bars | Ø Min 3 mm (0.12 inches), Ø Max 38 mm (1.50 inches) |
| Dimensions of hex bars (key socket) | Ø Min 3 mm (0.12 inches), Max 32 mm (1.26 inches) |
| Side of square bars | Ø Min 3 mm (0.12 inch), Max 26 mm (1.02 inch) |
| Magazine capacity (useful width) | 28 bars Ø 10 mm (0.40 inches) |
| Minimum bar length | 1,000 mm (3.3 feet) |
| Maximum bar length | 3,200 mm (10.5 feet) |
| Maximum bar weight | 30 kg |
| Maximum feed speed (adjustable) | 1200 mm/s |
| Maximum return speed (adjustable) | 1600 mm/s |
| Minimum drop length | 70 mm |
| Bar change time (*C) | 20s |
| Supply voltage | 230 Volt |
| Network frequency | 50 Hz |
| Control voltage | 24 Volt DC. |
| Installed power | 2 kW |
| Oil quantity | 57l |
| Air pressure | 8 bar |
| Air consumption ("D) | 20 Nl/min |
| Machine weight | 820 kg |
