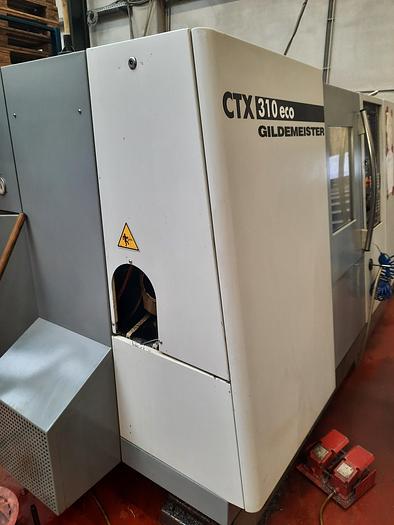

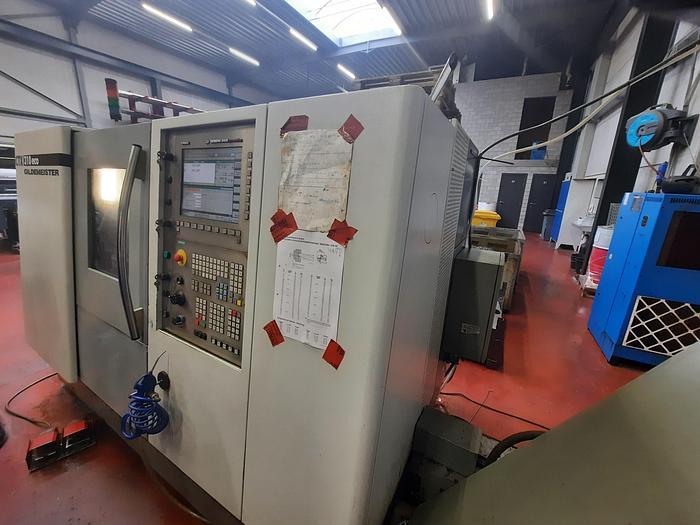

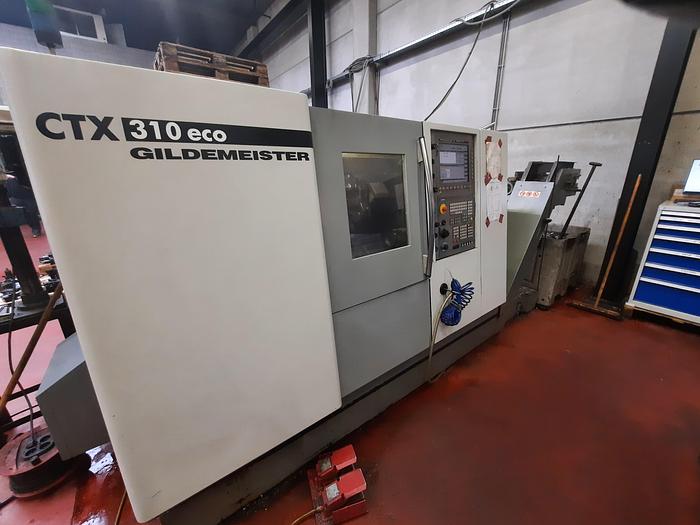

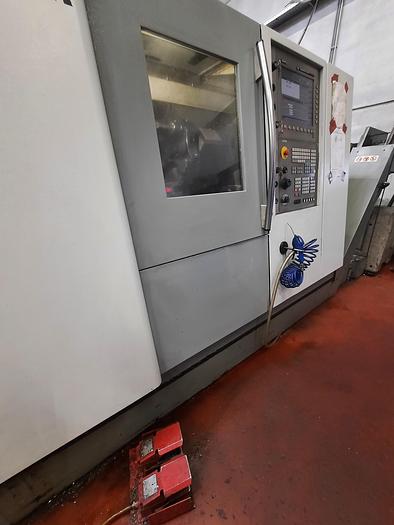

2007 DMG CTX 310 Eco Gildemeister
Sold
2007 DMG CTX 310 Eco Gildemeister
Location:Belgium
Description
Machine is in good condition and is still in operation.
IMMEDIATELY AVAILABLE.
Can be inspected under power.
More info on request.
Please note: The information on this page has been obtained to the best of our knowledge and belief. This information is given in good faith, but accuracy cannot be guaranteed. Accordingly, this information is not binding and does not constitute a contractual condition. We recommend that you check all essential details during an inspection of the machine. In order to save unnecessary travel costs for our customers, in most cases we suggest to organize a live video inspection.
Specifications
| Manufacturer | DMG |
| Model | CTX 310 Eco Gildemeister |
| Year | 2007 |
| Condition | Used |
| Control | SIEMENS 810D |
| Max spindle speed | 5000 rpm |
| Spindle drive power | 11 KW |
| Chuck diameter | 210mm |
| Spindle Hole | 68.5mm |
| Center distance | 581 mm |
| Center height | 190 mm |
| Diameter on the bed | 330 mm |
| Diameter on the support | 260 mm |
| Z axis stroke | 450mm |
| Z axis rapid feed | 30m/min |
| X-axis rapid feed rate | 24 m/min |
| Z axis thrust | 4500 N |
| X axis thrust | 4500 N |
| Displacement of the tailstock | 400 mm |
| Tailstock drive | CNC numerical control hydraulic |
| Max clamping force | 4000 N |

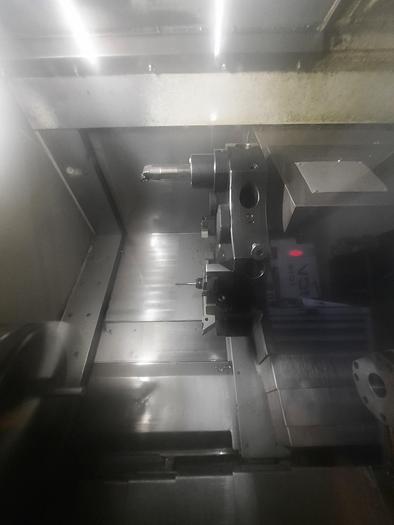

| Tool changer | 12 of which 6 are for driven tools |
| Tool Attachment | 30 VDI |
| Tool bar section | 20 x 20 mm |
| Coolant reservoir | 175L |
| Pump capacity | 30l/min |

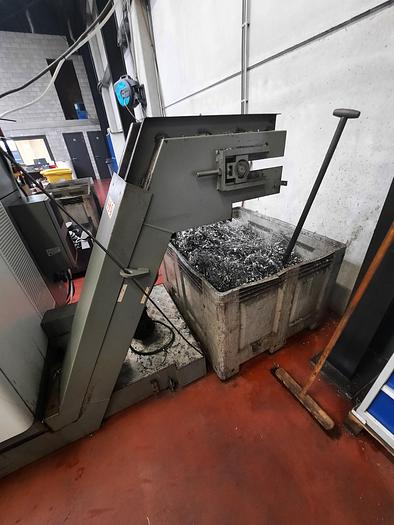

| Chip conveyor | yes |
