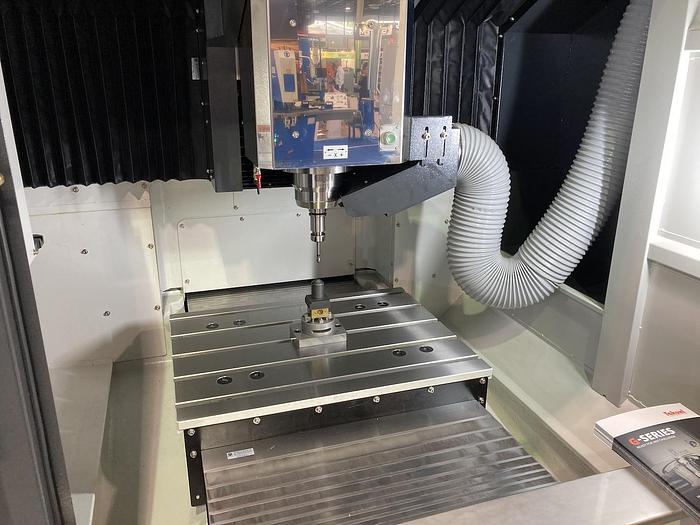

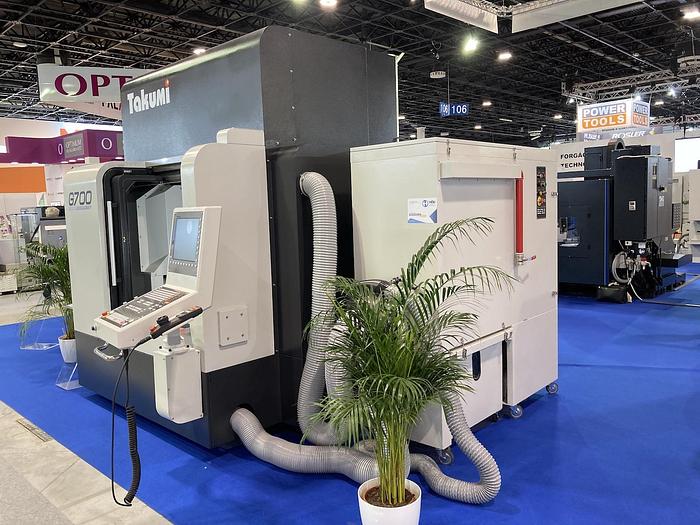

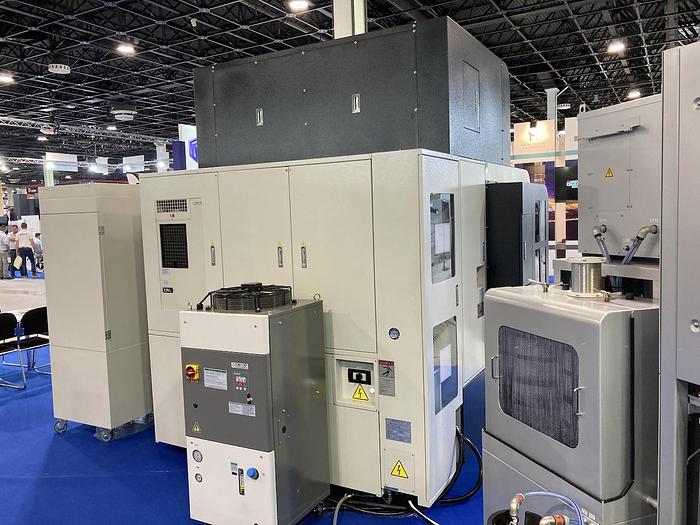

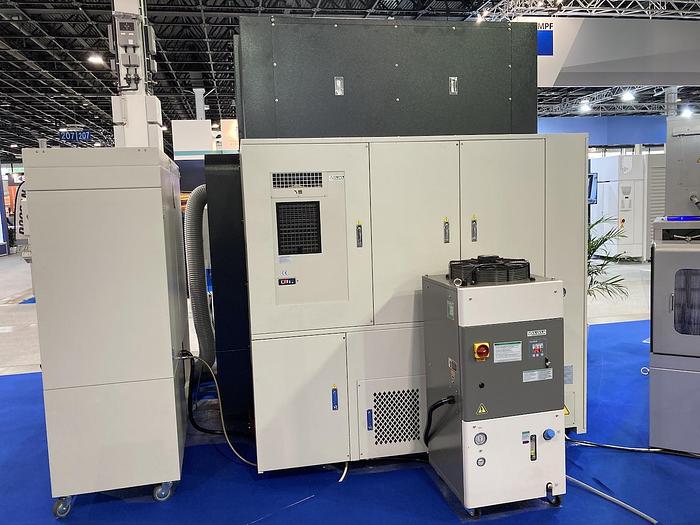

2017 TAKUMI G700 Graphite 3 axis machining center (ex DEMO machine)

No longer available

2017 TAKUMI G700 Graphite 3 axis machining center (ex DEMO machine)

Location:Germany

Description


Ex DEMO machine - as good as new!


Working- / Spindle hours: 325 / 45


In excellent condition and can be inspected under power.


IMMEDIATELY AVAILABLE.



Technical specifications:

Table working surface W x D (mm): 810 x 620

Load max. (uniform distribution) (kg): 500

Distance from spindle nose to table (mm): 150 - 650

Distance between columns (mm); 850

T-Slots (DIN 650): 5 x 18 x 125

Spindle Taper: HSK50-E

Type: Motorspindel

Power S1/S6 (kW): 20 / 26

Torque S1/S6 (Nm): 10,4 / 13,5

Spindle Speed (rpm): 25.000

Rapid Traverse X/Y/Z-Axis (m/min): 30 / 30 / 30

Cutting Feed Rate X/Y/Z-Axis (mm/min): 20

ATC Type: Doppelgreifer

Magazine Capacity: 24

Maximum Tool Diameter (mm) full / next pocket empty: 75 mm

With Empty Pockets (mm): 120

Maximum Tool Length (mm): 300

Maximum Tool Weight (kg): 7


Maximum Floor Spade (mm) W x L x H: 2.890 x 4.510 x 2.870

Machine Net Weight (kg): 7.000

Electrical Power Consumption (kVA / A): 50

Air Requirements (bar): 6


Standard equipment (cf attached pdf document about the Takumi G700)


More information on request.


Specifications

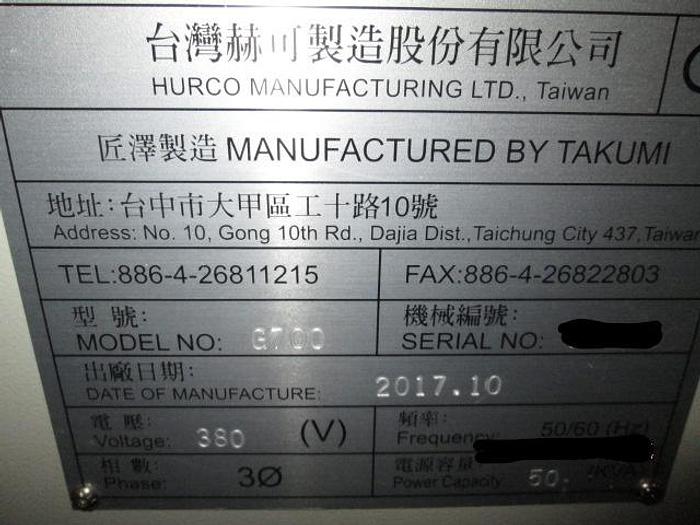

ManufacturerTAKUMI
ModelG700 Graphite 3 axis machining center (ex DEMO machine)
Year2017
ConditionUsed
